OP-Imports MKIV Hardtop lightweight-stroker singleturbo

        Täglich im Einsatz mit 767 PS / 845 Nm @ 19PSI (1.3bar) @ 91 (US) Benzin

        1 bar @ ~3500 rpm / 74mm Turbo

        "All Out" Abstimmung: 1211 PS / 1150 Nm @ 34PSI (2.3bar) @ V16 (US) Benzin

Hier zeigen wir kurz, warum wir keine Konkurenz haben.

So arbeiten wir - Praezision und Umfang unserer Projekte!

- Von Motoren-DESIGN, ueber Motoren-BAU bis zur Abstimmung

- Turbo- und dazugehoerige Benzinsystem-Dimensionierung

- Kuehl-Management

- Dimensionierung von Antriebsstraengen

- Wire/Pipe/Line - Routing

- Internes und externes Druck-"Management"

- Intake und Abgas-Systeme

- Planen und Koordination von Fahrwerkskomponenten

- Organisation und Verbau von Monitoring-Systemen

- Design und Verbau von Audio Systemen

- Weak-Link Analysis

und vieles mehr...

                        Engine / Power:

Engine / Power:

• Fully custom build/blueprinted Prototype 3.3L Hybrid-2JZGTE
• Engine is developed for up to 1400RWHP and 10000RPM
• Total rotary-mass savings: 14.15 lbs
• HKS MHG
• Custom CP pistons (ultra-lightweight)
• Custom CP ring package
• Custom Carrillo rods (ultra-lightweight, WPC’d)
• Custom crankshaft (lightened, hardened, cryo’d, WPC’d)
• Billet Maincaps
• ACL Race main bearings (WPC’d)
• ACL Race rod bearings (WPC’d)
• ACL Thrustwashers (WPC’d)
• ARP L19 Head studs
• ARP Main studs
• Customized non-VVTI NA-Head - ported, polished
• Supertech +1mm valves (Iconel @ exhaust)
• Supertech dual valve springs
• Supertech shim-under-bucket system
• Crower 272° high-lift cams
• Custom exhaust manifold (coated)
• Custom Intake Manifold (polished)
• Custom thermal-barrier intake gasket
• Wilson Throttlebody (polished) w/ custom V-Band
• UR Camgears (chromed)
• ARP Camgear-Bolts
• MVP billet timing belt tensioner bracket (polished)
• Greddy Timing belt
• Greddy Timing belt cover
• UR Pulley-Set (P/S and W/P chromed)
• ATI Competition Crank-pulley
• TTC Billet catch-can with hard-lines
• TRD engine mounts w/ new engine-brackets
• Motul 300V Competition 15W-50 Oil



Turbo / Exhaust:

• Custom COMP 74mm TBB w/ extended tip Billet BW-wheel (front polished, rear + center-section ceramic coated), Antisurge-Housing, Oil-less, V-Band flanged
• SP Quickspool-Valve
• DEI Titanium Turbo Blanket
• Tial MV-R Wastegate
• Custom dump-pipe
• Custom 4” upper-pipe (ceramic coated & heat-wrapped)
• Custom FULL TITANIUM 4” exhaust
• upper-pipe to tip total weight 12 lbs
• Custom Burns/Coast Fab resonator
• Custom JUN BL muffler
• 4" AEM Dryflow Air Filter

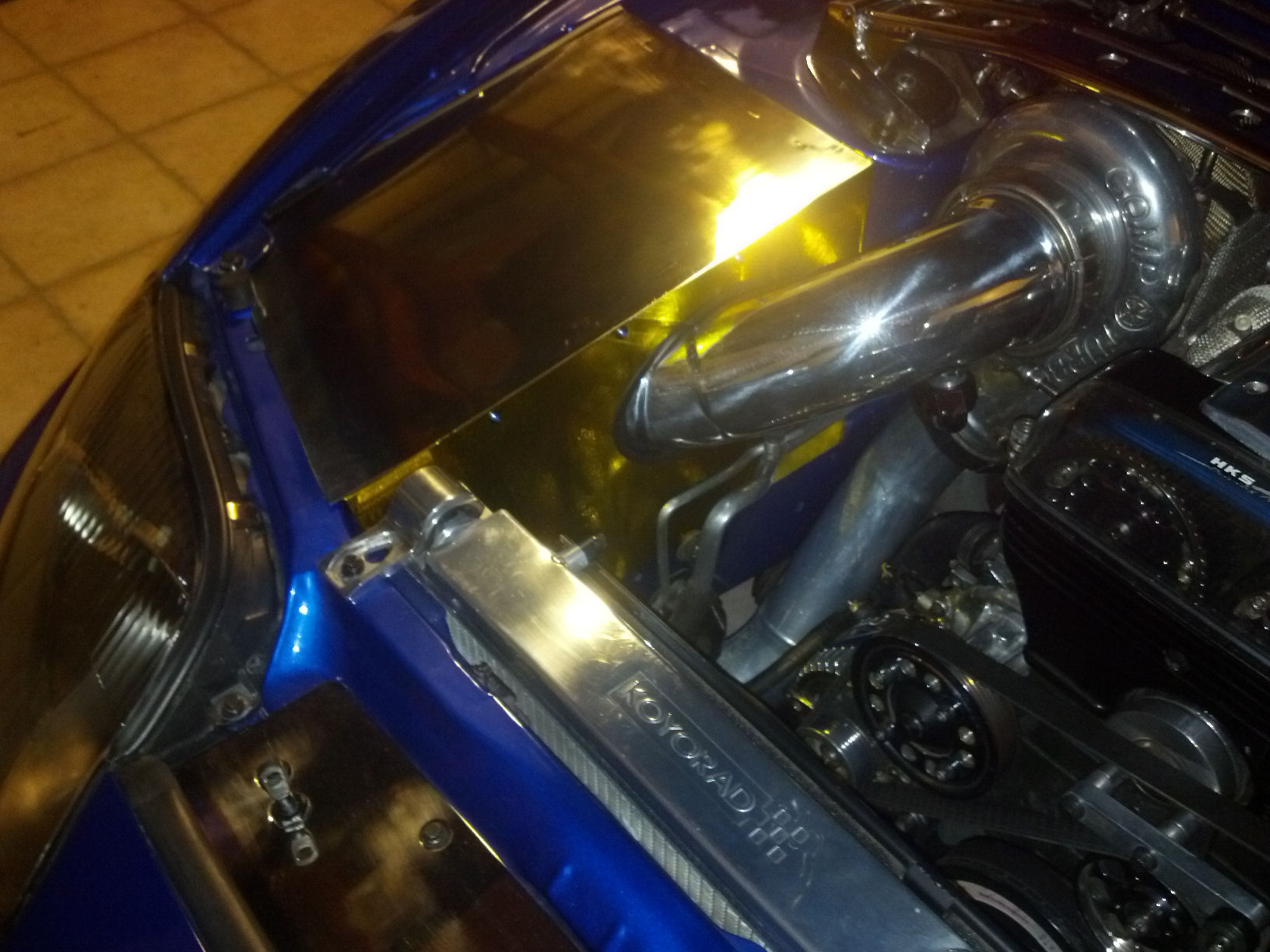

• Custom FULL TITANIUM Airbox (polished/anodized & heat-shielded)
• Custom 4” FMIC
• Custom FMIC piping (3” ceramic coated hot & 3.5” polished cold)
• Tial BOV



Fuel (dimensioned for up to 2000HP on gas):

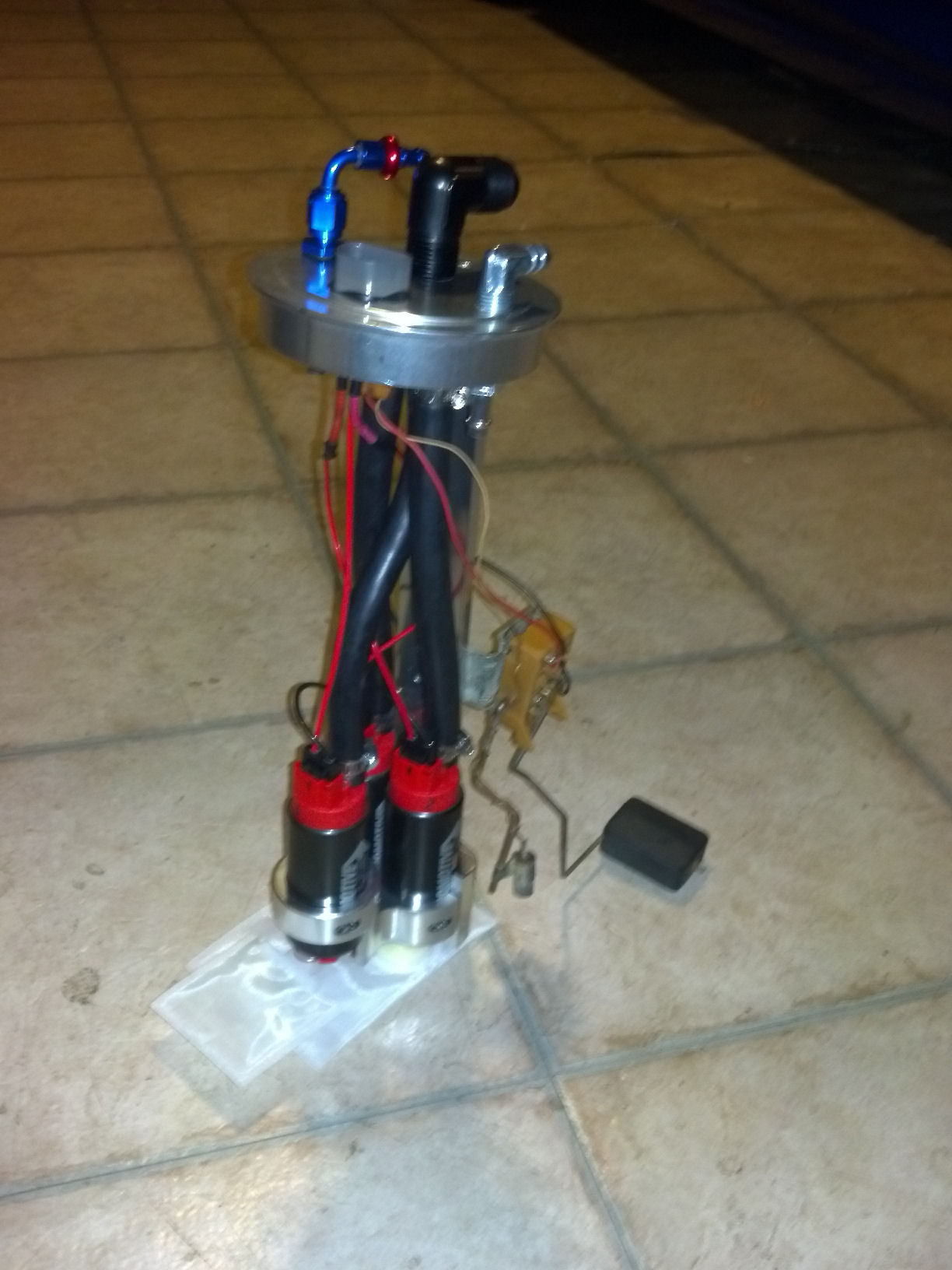

• Triple Aeromotive 340 pumps staged on Billet hanger
• Aeroquip Teflon Steel Braided -10AN Tank to Splitter
• Aeroquip Teflon Steel Braided -6AN Dual Feeds
• Aeroquip Teflon Steel Braided -6AN Return Fuel Line
• Fuelab 828-Series -10AN Billet Aluminum Fuel Filter
• Custom 17.5 mm Dual-Inlet Fuelrail (polished)
• Fuelab 515-Series Fuel Pressure Regulator
• Injector Dynamics 2000cc saturated injectors
• Resistor-pack eliminated



Cooling:

• Koyo Radiator
• Evans NPG+ waterless coolant
• TRD Thermostat
• TRD Radiator Cap
• Twins Turbo Motorsports SPAL-Kit
• Derale Thermo-switch
• Zirgo 14” AC-Fan
• Derale P/S cooler
• Greddy Oilfilter-Relocation Kit (modified w/ -10AN Fittings)
• Canton Racing Billet Oil Filter (polished & Gold reflective heat-tape)
• Dual B&M 11”x8” Oil coolers
• Dual PermaCool 8” Oil cooler fans
• Custom overflow tank
• Custom FULL TITANIUM air-duct panel (polished/ anodized)
• Thermo-Tec heat barriers



Drivetrain:

• Jack’s Transmission Stage 3 V160 (REM ISF micropolished)
• Carbonetic Triple-Carbon Clutch
• ARP Flywheel-Bolts
• TRD Transmission Mount
• Fidanza ShortShifter
• MVP Billet Shifter Bushings
• ACPT Carbon fibre driveshaft (2000HP rated)
• Pro-Level rear axle/hub-kit (1200HP rated)
• New wheel-bearings
• TRD LSD
• Titan solid differential mounts
• Royal Purple Synchromax for V160
• Royal Purple Max-Gear for Diff



Suspension / Brakes / Wheels:

• Penske 8760 triple-adjustable suspension
• TRD Gen 2 Strutbar (chromed)
• Titan Swaybars
• R2 Racing Steering Rack Bushing Kit
• R2 Racing Control Arm Bushing Kit Front & Rear
• Do-Luck Cross-bar (black-chromed)
• Custom upgraded brake-booster
• Greddy BBK 8-pot front / 4-pot rear /w Supra-logos & custom paint
• Tilton TSR-1 Racing brake fluid
• Savini Forged wheels, 20” - width: 10.5 & 12
• Michelin Pilot Super Sport 285/30 & Michelin Pilot Sport Cup ZP 335/25
• McGard Chrome Luglocks



Electronics:

• ProEFI 128
• ProEFI FlexFuel
• ProEFI I-Boost
• ProEFI Traction-control
• ProEFI CAN Gauge
• ProEFI Wideband Sensor
• ProEFI FuelPressure Sensor
• ProEFI Exhaust BackPressure Sensor
• Innovate Wideband
• HKS TwinPower DLI

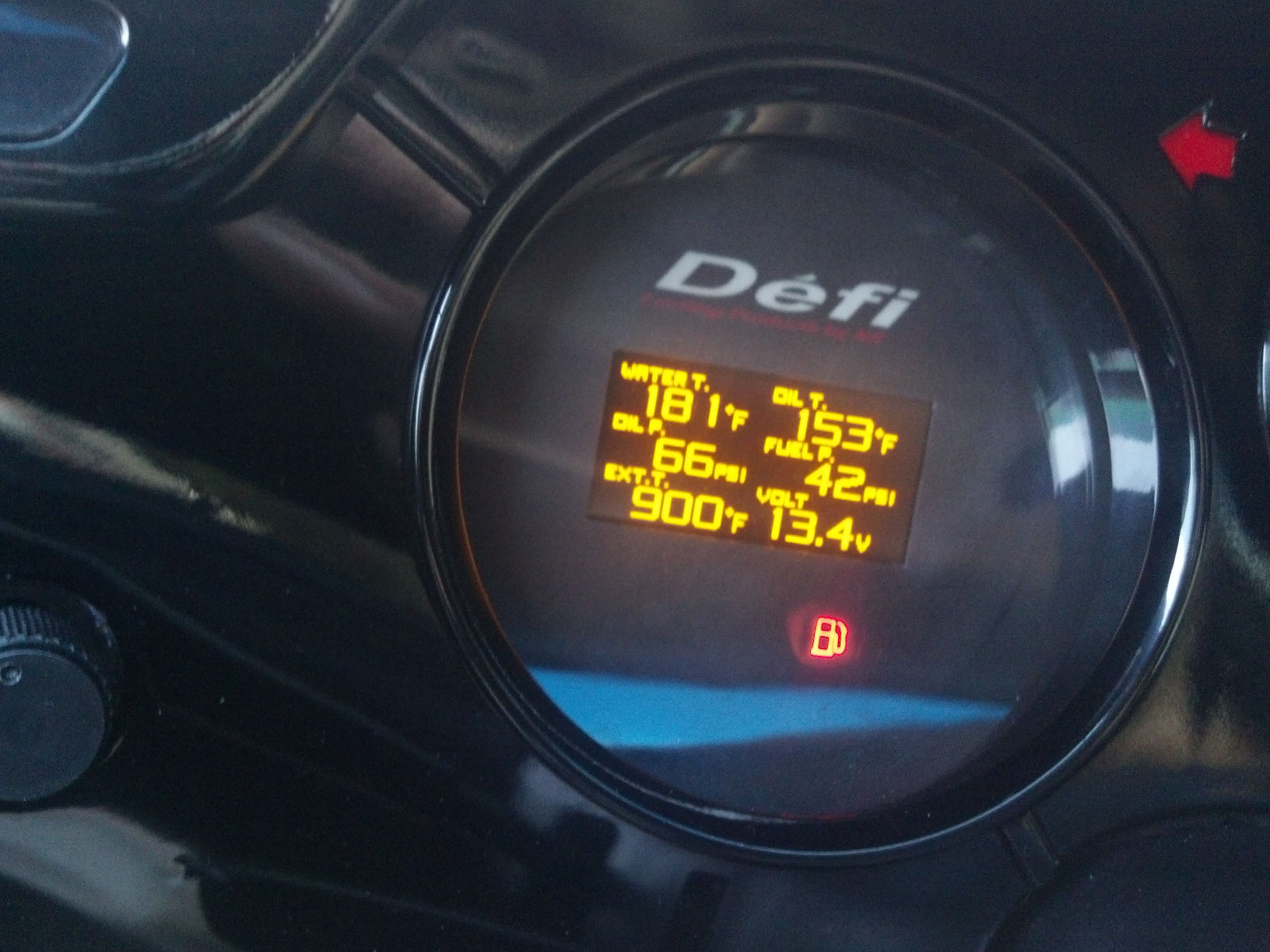

• Defi Advance custom gauge cluster
• Water Temperature
• Oil Temperature
• Oil Pressure
• Fuel Pressure
• Exhaust Gas Temperature
• VEI Air-Temp Gauge /w 3 sensors: pre turbo & FMIC in/out
• Tire Pressure/Temperature Monitoring System
• TRD 10000rpm Tachometer
• Engine harness modified for Single-Turbo



Exterior:

• Custom paintjob
• Engine bay shaved/tucked
• Do-Luck Front (imported from Japan)
• Seibon Carbon fibre Hood
• Seibon Carbon fibre Fenders
• Varis Side Skirts (imported from Japan)
• Varis Carbon fibre Rear (imported from Japan) (1 of 1)
• Seibon Carbon fibre Trunk
• Varis Wing (imported from Japan)
• EU-Spec Mirrors (ele. adjustable & folding and heated)
• AeroCatch Hood pin system /w locks
• Custom Hood-lifts
• All trims/gaskets/seals/liners new
• Nigrin front wipers (imported from Germany)
• Tinted windows
• New 98 headlights
• New 98 taillights
• Clear turnlights
• Clear rear-sidemarkers
• HIDs @ low beams & high beams
• LEDs @ fog lights / parking lights / rear markers
• New engine-under-panel & fender-inserts



Interior:

• New Toyota seats
• Custom leather-doorboards
• Custom Carbon fibre door sills
• JDM leather headliner
• New carpet
• New floor-mats
• New & painted dash-panels /w custom fitted gauges
• New A/C Control /w white/red LED conversion
• New center-console
• New 98’ steering wheel
• New handbrake
• Momo Nero shifter
• Momo shift boot
• Momo Stealth Airmetal Top pedals
• New trunk-shocks
• New JDM sun-visors
• 1W LED dome-lights
• HalGuard HG100C Fire Extinguisher



Engine optical:

• Polished FSM Manifold
• Polished Wilson Throttlebody
• Polished FSM Fuelrail
• Polished Valve Covers w/ -10AN Fittings
• Polished Waterneck
• Polished Tensioner
• Polished Waterpump incl. backhousing & outlet
• Polished TTC Performance Billet Aluminum Upper Shock Arm
• Polished Billet Oil Filter
• Polished Radiator-brackets
• Polished Turbo-Housing
• Polished Master Brake-Cylinder
• Polished Clutch Master-Cylinder
• Polished ABS unit
• Chromed PS-reservoir
• Chromed UR Camgears
• Chromed P/S & Waterpump-pulleys
• Chromed UR Tensioner pulley
• Chromed K&N ISC-breather
• Chromed TRD Strutbar
• Chromed TRD-Style OilCap
• Custom sparkplug-cover (partly polished)
• Painted Brake-booster
• Painted ABS housing-bracket
• Painted P/S and Brake-reservoir-cap
• Painted fuse-box
• Painted engine-front-mid-panel
• All bolts in the engine-bay replaced with ARP



Multimedia:

• Polished, upgraded 250A Alternator
• Optima BlueTop Battery (relocated in trunk)
• 2.4F Capacitor
• Custom main-power-wiring /w distributors
• Pioneer AVIC-F90BT Navigation System
• Pioneer GEX-P920XM XM-Radio
• Full active-SQ-system with:
• Diabolo 16XS (handmade in Germany)
• Diabolo R25XS (handmade in Germany)
• 2x Peerless XXLS 10” Subwoofers (imported from Germany)
• Eton PA1054 Amplifier for Front-Speakers (imported from Germany)
• Eton 1502 Amplifier for Subwoofers (imported from Germany)
• Monstercable Battery Terminals
• Monstercable ANL-Fuse-Holder (150A)
• Monstercable 0/1 Gauge to Distributors (positive and negative wired)
• Monstercable 0/1G to 2x 4G Distributors w/ 60 and 100A fuses
• Monstercable 4 Gauge to Amplifiers
• Monstercable High-End RCA cable
• Phoenix-Gold 90° RCA Adapters
• Monstercable 8 Gauge Speaker-Cables w/ 24K gold connectors
• Custom Subwoofer-Install by “Sounds Good Stereo” in Woodland Hills
• Custom Speaker grilles (made in Germany)
• Rear-speaker delete
• Viper 791XV Alarm /w all options

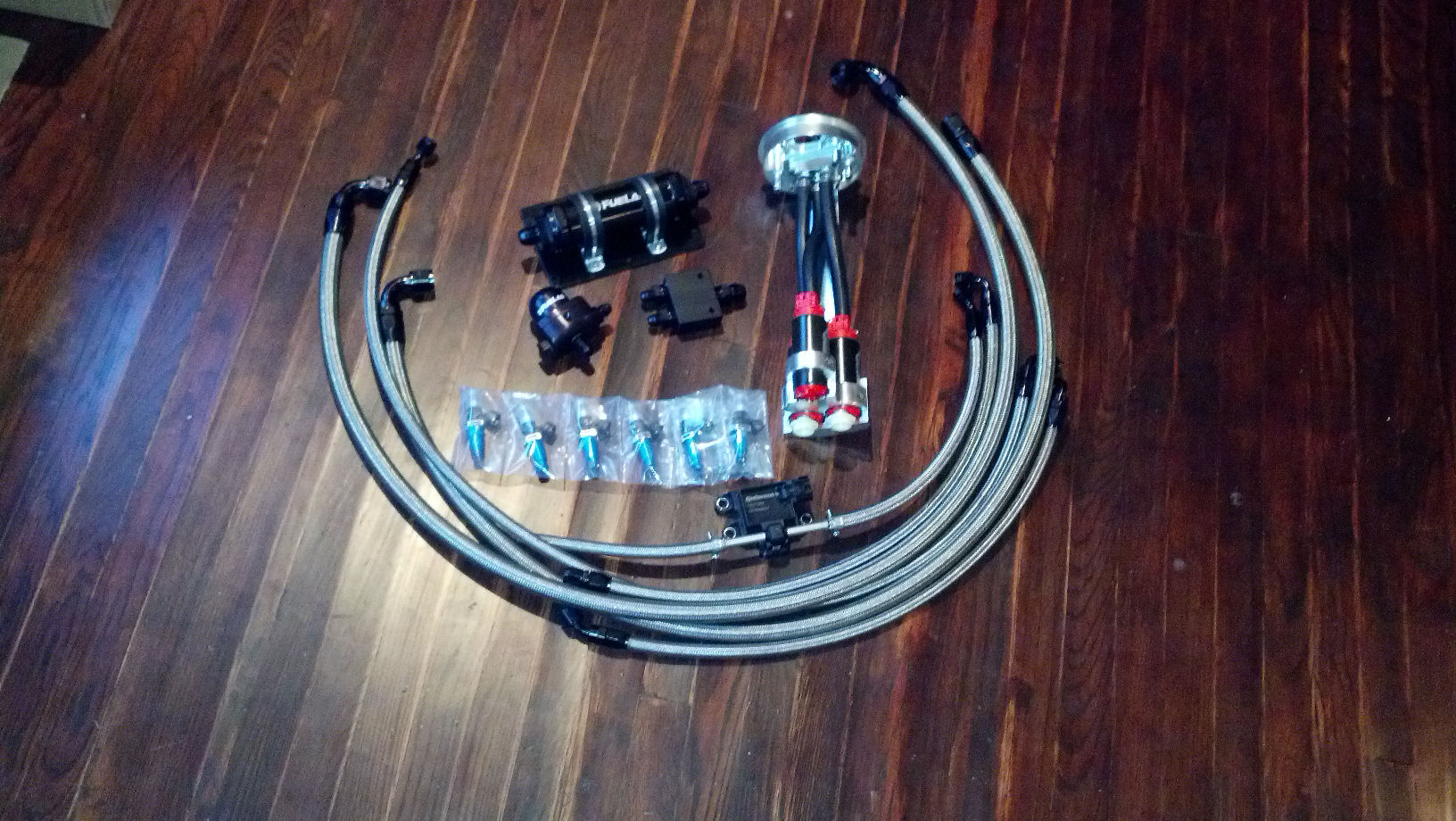

Genug Benzin fuer 2000PS!

Korrekte Dimensionierung und nur die besten Komponenten! Natuerlich ist FLEXFUEL integriert!

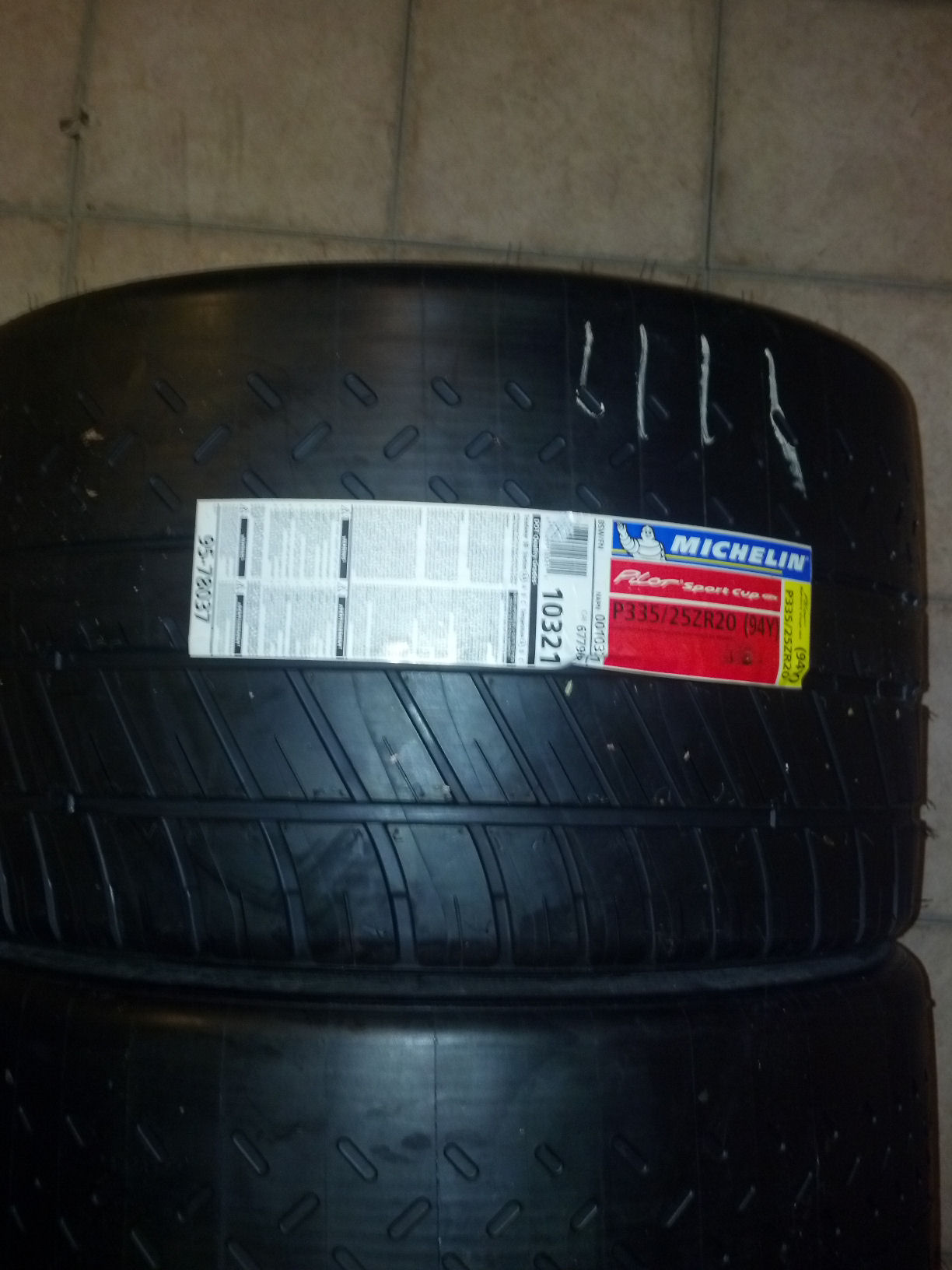

335/25/R20 CUP Reifen- LOW BOOST: Traktion ab dem 3. Gang, ALL OUT: "Traction not found"

In-Haus Anfertigung. Weltweites Einzelstueck. Keine unnuetzen Anzeigen - alles im Ueberblick mit bester Technik!

Titanium-Anfertigungen und maximale Praezision mit der Verrohrung (im gesamten Wagen sind nur V-Band oder AN Verbindungen!)
